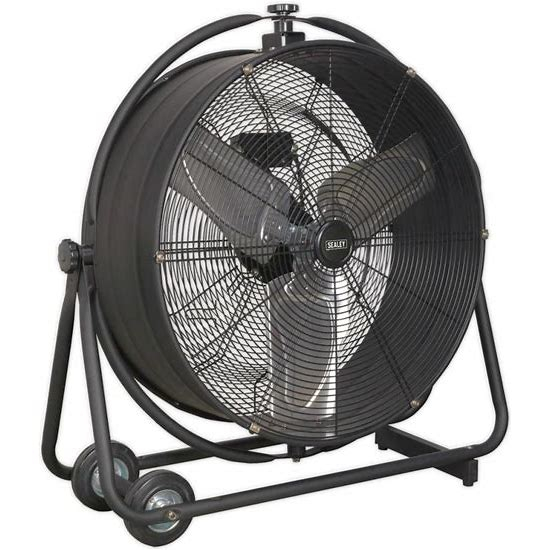

Sealey HVF24S High Velocity Fan
High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air.
• Robust unit with heavy-duty gauge steel casing, guard and frame.
• Featuring a 360° tilt function allowing for the direction of airflow to be positioned anywhere on a 360° axis.
• Carefully balanced and fully guarded blades provide safe operation.
• Maximum Airflow: 155.3m³/min(5484cfm).
• Fitted with 3-pin plug.
• Suitable for industrial, commercial, agricultural, automotive workshop and showroom applications.
| Maximum Fan Flow Rate (F): | 155.3m³/min |
| Fan Power Input (P): | 116.3 W |
| Service Value (SV): | 1.34(m³/min)/W |
| Standby Power Consumption (Psb): | 0.0 W |
| Fan Sound Power Level (Lwa): | 84 dB(A) |
| Maximum Air Velocity (c): | 3.7m/sec |
|
Current:
|
0.52A
|
|
Fan Diameter:
|
Ø610mm(24")
|
|
Maximum Airflow:
|
155.3m³/min(5484cfm)
|
|
Power:
|
116.32W
|
|
Speed Range:
|
1100-1350rpm
|
|
Speeds:
|
2
|
|
Supply:
|
230V
|
|
Nett Weight:
|
17.11kg
|
